NF-IO-8R8I

GENERAL

Power: 24V DC 110mA (all relays and inputs triggered, no RS485 communication)
Relay Out: 8.Nos (5A @ 277VAC / 3A 30V DC)
Digital Input: 8.Nos (+24V DC)
Isolation: Optical (Digital Input)
Protocol: RS485 Modbus RTU
Terminal: Screw Terminal
Enclosure: Rail Type Plastic or Metal Box with Power Supply (NF-IO-8R8I-M)
Dimensions: 105 x 90 x 60 mm

SERIAL PORT

Modbus Address: 1..254
Baudrate:2400,4800,9600,14400,19200,28800,38400
Databit: 8
Stopbit: 1
Parity: None, Odd, Even

DEFAULT SETTINGS

Modbus Address: 1
Baudrate: 9600
Databit: 8
Stopbit: 1
Parity: None

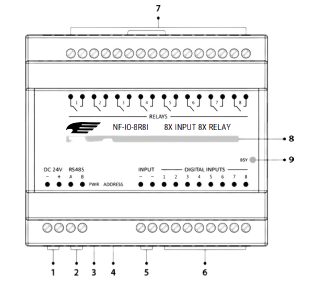

1– Power
2– RS485 Connection (Modbus RTU Connection)
3– Power On LED
4– Dip Switch
5– Digital Input Power Supply (-)
6– Digital Inputs
7– Relay Outs (5A @ 277VAC / 3A 30V DC)
8– Relay Out LED
9– Communication LED
