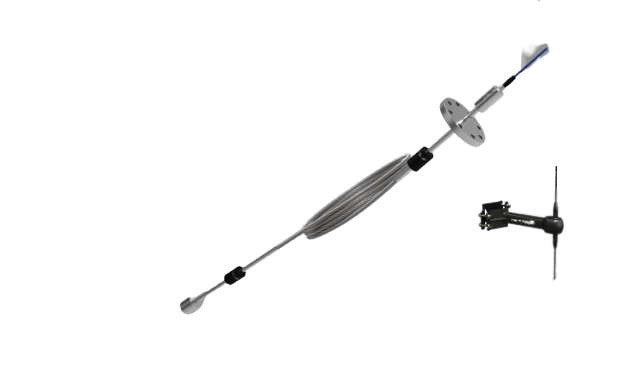

NF – FX

MECHANICAL CHARACTERISTICS

  • Measuring range up to 22m.
  • Stainless steel AISI 303 and Delrin enclosure Ø 42mm.
  • IP 68 degree protection up to 10m water submersion max. 24h.
  • Tank connection: threaded or flanged.
  • Corrugated stainless steel pipe AISI 316 Ø 18.0 mm.
  • N.2 INOX AISI 316/NBR floats Ø 105/50 mm.

ELECTRICAL FEATURES

  • Intrinsically safe construction 0 zone certified.
  • Wired RS485 and wireless versions.

METROLOGICAL DATA

  • Product level /mm.
  • Interface level / mm (water presence detection).
  • Product average temperature max 5 sensors.
  • Measuring probe accuracy ± 1.0 mm.
  • Real probe resolution ± 0,05mm.
  • Repeatability ± 0,2 mm.
  • Temperature accuracy -20 ÷ +50 °C: ± 0,2 °C.
