Multi-line lubrication systems

For demanding applications in nearly all industries

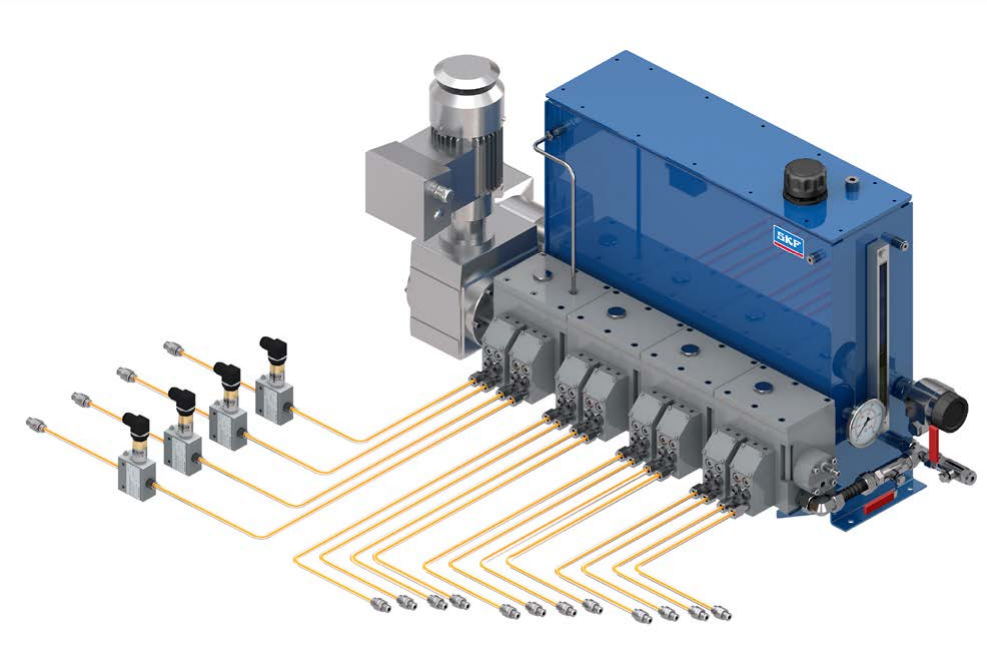

Multi-line pump units supply lubricant to lubrication points without extra metering devices. Thus, each lubrication point has its own pumping element. The system design is simple, accurate and most reliable. Multi-line pumps can be actuated mechanically, electrically or hydraulically. The easily exchangeable pumping elements are usually operated by eccentric cam. By selecting pumping elements with different piston diameters and/or stroke settings, an individual lubrication volume setting per pump outlet is possible.

Benefits

• Sturdy – durable pump series designed for 24/7 operation.
• Simple – continuous lubrication without electrical cycle timers, in most cases
• Versatile – select individual pump element characteristics and oil reservoir size.
• Precise – set the required stroke volume at the pumping element.
• Broad viscosity range due to special designs and small piston clearance.
• ATEX explosion-proof versions available.
• Extra, downstream-located low control valves or progressive metering devices possible.
